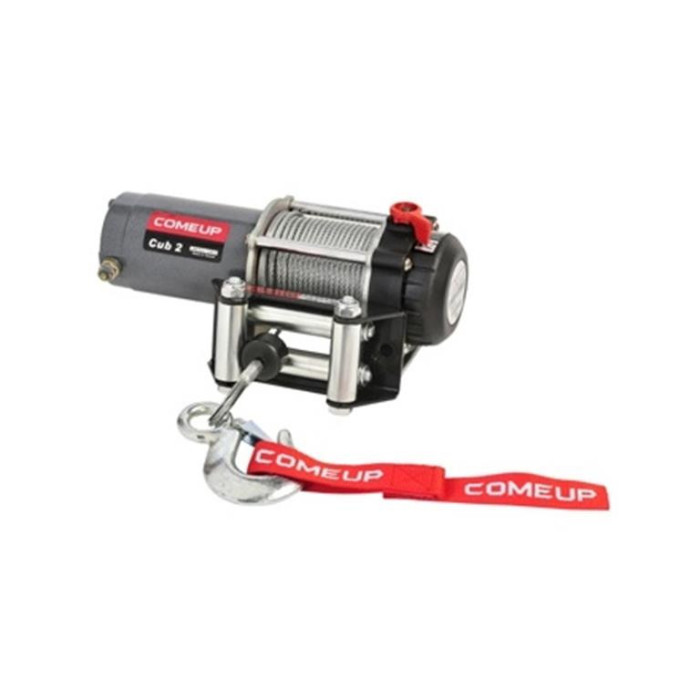

Winch COMEUP Cub 2
Winch COMEUP Cub 2
268292
€290.04
Tax included
(239.7 € tax excl.)
Winch COMEUP Cub 2
- Winch Cub 2
- High efficiency, low amp draw and sealed permanent magnet motor
- Lightweight and compact design is ideal for easy installation
- Winch drum centred avoids the interference of rope and provides streamlined appearance
- Mechanical load holding and dynamic brake for 100% braking
- Cam activated clutch device for rapid wire rope payout
- Full metal 3 stage planetary gear train for greater pulling force
- Submersible sealed contactor handles high amps and allow higher duty cycle
Specification/Part Numbers
- Part number: PN 122012
- Rated line pull: 907 kg (2,000 lb) single line
- Motor: 600 w / 0.8 hp 12V permanent magnet
- Gear train: 3-stage planetary 103:1
- Clutch (freespooling): Cam activated
- Brake: Mechanical spring applied and dynamic brakes
- Winch construction: Aluminum die cast drum and steel plate housings
- Drum size: 38 x 75 mm (1.5" x 3")
- Control: Handlebar rocker switch
- Rope type: Galvanized aircraft A7 x 19
- Rope size: 4 mm x 15.2 m (5/32" x 50')
- Mounting bolt pattern: 76 x 124 mm (3" x 4.9")
- Winch weight (including rope) : 6.5 kg / 14.3 lb
- Gross weight : 10 kg / 22 lb
- Box dimension, (L x D x H) : 296 x 223 x 140 mm (11.7" x 8.8" x 5.5")
