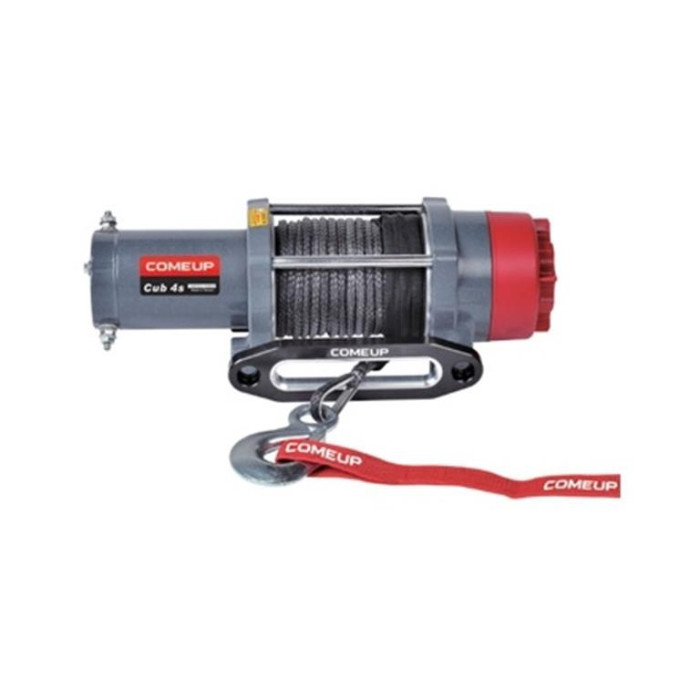

Winch COMEUP Cub 4 syntetic rope

Winch COMEUP Cub 4 syntetic rope

268290
579,14 €
Su PVM

(478.63 € be PVM)

Winch COMEUP Cub 4 syntetic rope

Kiekis
Pridėti į pageidaujamus
Išparduota

Winch cub 4s syntetic rope
  • 4,000 lb (1,814 kg) line pull
  • Power in and power out
  • Winch drum centred avoids the interference of rope and provides streamlined appearance
  • Mechanical load holding and dynamic brake for 100% braking
  • High efficiency, low amp draw and sealed permanent magnet motor
  • Full metal 3 stage planetary gear train for greater pulling force
  • Sliding pin and ring gear clutch for rapid wire rope payout
  • Weather sealed contactor gives better water proof and lower amp. draw
  • E/e marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*01
Specification/Part Numbers
  • Part number: PN 129410
  • Rated line pull: 1,814 kg (4,000 lb) single line
  • Motor: 800 w / 1.0 hp 12V permanent magnet
  • Gear train: 3-stage planetary 191:1
  • Clutch (freespooling): Sliding pin and ring gear
  • Brake: Mechanical & dynamic
  • Winch construction: Aluminum die cast housings and drum
  • Drum size: 55 x 119 mm (2.2" x 4.7")
  • Control: Handlebar rocker switch
  • Rope type: Galvanized aircraft A7 x 19
  • Rope size: 5.5 mm x 15.2 m (7/32" x 50')
  • Mounting bolt pattern: 76 x 168 mm (3" x 6.6")
  • Winch weight (including rope) : 8.9 kg / 19.6 lb
  • Gross weight : 13.1 kg / 28.9 lb
  • Box dimension, (L x D x H) : 380 x 362 x 144 mm (15" x 14.3" x 5.7")
COMEUP
5904858417421
